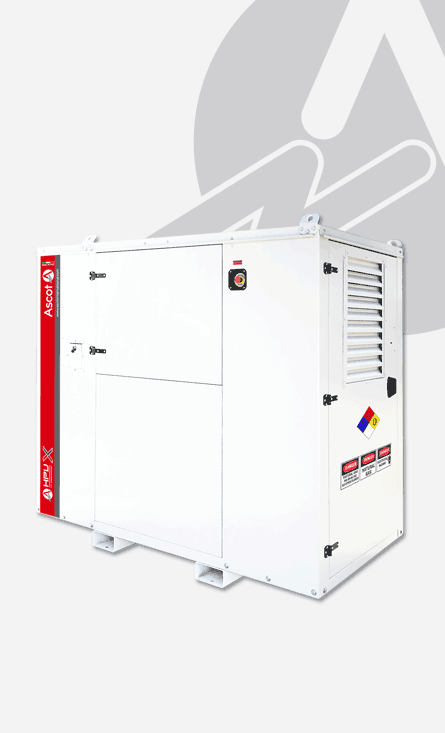

The HPU X is a high efficiency all-in-one Hybrid generator, capable of achieving greater performance thanks to 12 years of proven worldwide experience.
The HPU X, with variable speed engine and longlife deep cycle batteries, guarantees Certified fuel consumption savings up to 60% compared to a traditional genset. And up to 99,9% fuel savings with PV Plants. It is ready to be connected with renewable energy sources to further reduce fuel consumption and CO2 emissions .
The HPU X is particularly useful for remote/rural Off-grid applications or in areas where the grid is available with frequent outages (Bad-grid).
- Hybrid Generators (7-24 kW)
- Variable speed Diesel Engine
- PMG Technology
- High proven savings
- Deep cycle batteries
- Plug & Play with renewable energy sources
- Armored and Anti-theft devices
|• DC VARIABLE SPEED: -48 VDC GENSET WITH PMG TECHNOLOGY|
|• DIESEL ENGINE|
|• DEEP CYCLE BATTERIES (PZS OR LITHIUM TECHNOLOGY)|
|• HYBRID CONTROLLER FOR COMPLETE SYSTEM MANAGEMENT|
|• REAL TIME MANAGEMENT SYSTEM|
|• PLUG & PLAY WITH RENEWABLE ENERGY SOURCES|
|• INTEGRATED FUEL TANK WITH ANTI-SIPHONING SYSTEM|
|• SAND FILTERS, SOUND & WEATHERPROOF CANOPY UP TO 70 DBA @ 1M|
|• ANTI-THEFT DEVICES: ARMOURED DOORS TO PREVENT ACCESS WITH CROW BAR, SAFETY CAGE FOR CHARGING BATTERIES, STEEL BELT FOR STARTER BATTERY|
|• CAGE FOR CHARGING BATTERIES, STEEL BELT FOR STARTER BATTERY|
SCOPE OF SUPPLY
The HPU / Hybrid Power Unit it is designed to power off grid telecom sites with very low operation costs. Directly connected to -48 V DC Power it does not required a rectifier. The innovative & patented HPU is an Integrated Plug & Play package designed to be directly plugged in @ 48 Vdc to the Telecommunication Site located in Remote/Rural Areas or where the mains is either not present or unstable during the day.
UNIQUE SELLING POINTS
• FULL ALL IN ONE HYBRID SYSTEM PACKAGE (PV+ BATTERIES +DC GENERATOR);
• 24 HOURS OPERATING WITH ONLY 2,6 LITRES PER DAY * WITH SOLAR;
• HIGH FUEL EFFICIENCY WITH VARIABLE SPEED DC GENERATOR;
• RECTIFIER/INVERTER NOT REQUIRED;
• 10-12 MONTHS FUEL INDEPENDENCY WITH ONLY 1000 LITRES INTEGRATED TANK;
• 5-10 YEARS BATTERY LIFE DEPENDING ON TECHNOLOGY INSTALLED;
• ANTITHEFT SYSTEM;
• PROTECTION AGAINST VANDALISM AVAILABLE;
• WEB BASE REMOTELY CONTROLLED FOR POWER AND SITE MANAGEMENT.
For more info and specifications contact us at firstname.lastname@example.org
